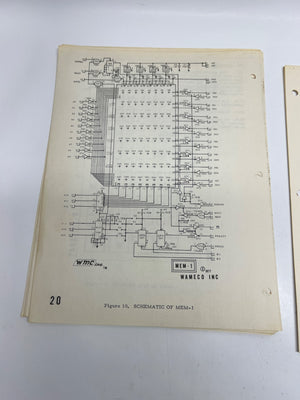

• Description: A complete 23-page technical assembly and operational manual for the Wameco MEM-1 Eight Kilobyte Static Memory Board. This extensive S-100 bus document includes detailed circuit descriptions, a full bill of materials (BOM), step-by-step assembly guidelines, and high-resolution logic schematics. Produced in San Jose, California, at the height of the Homebrew Computer Club era, this manual provides the exact jumper settings and timing data required to integrate 8K of static RAM into an Altair 8800 or IMSAI 8080 system.

• Manufacturer: Wameco Inc. (San Jose, California)

• Manufactured In: USA

• Condition Description: This is a vintage 23-page technical document. The pages show minor age-appropriate tanning but are crisp and free of major tears. The typewritten text and complex engineering diagrams remain sharp and fully legible for restoration work.

• True Condition: See pictures for true condition.

• Model Number: MEM-1 (8K Static RAM)

• Extra Notes: Wameco was known for industrial-quality PCB layouts. Because this is the full 23-page version, it likely includes the rare "Theory of Operation" section, which is a treasure trove for tech historians.
