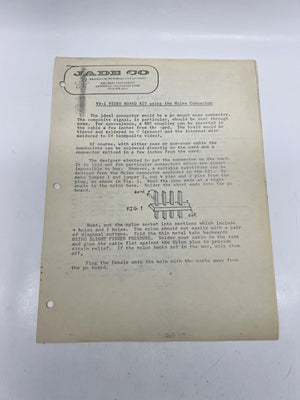

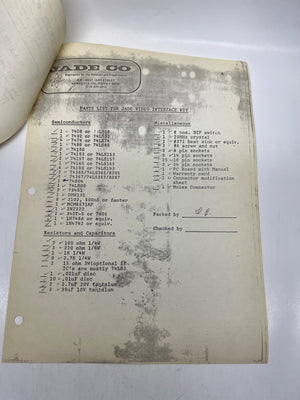

Description: Original vintage technical assembly and instruction sheet for the Jade Computer Products VB-1 Video Board Kit. This document provides the essential schematics and component placement guides for building the video interface that provided composite output for early S-100 systems. It includes details on the specific Molex connector pinouts and signal timing required to generate a stable video display for 8080 or Z-80 based microcomputers.

Manufacturer: Jade Computer Products (Lawndale, California)

Manufactured In: USA

Condition Description: This is an original vintage technical document. The paper shows age-appropriate tanning and light handling wear consistent with a 1970s workshop environment. The print and technical diagrams remain sharp, clear, and fully legible for assembly or restoration work.

True Condition: See pictures for true condition.

Model Number: VB-1 Video Board Kit

Extra Notes: Jade was a cornerstone of the Lawndale/Hawthorne "Silicon Beach" scene. The VB-1 is a historically significant board as it was one of the most affordable ways for Altair and IMSAI owners to add a "glass terminal" capability to their machines.
